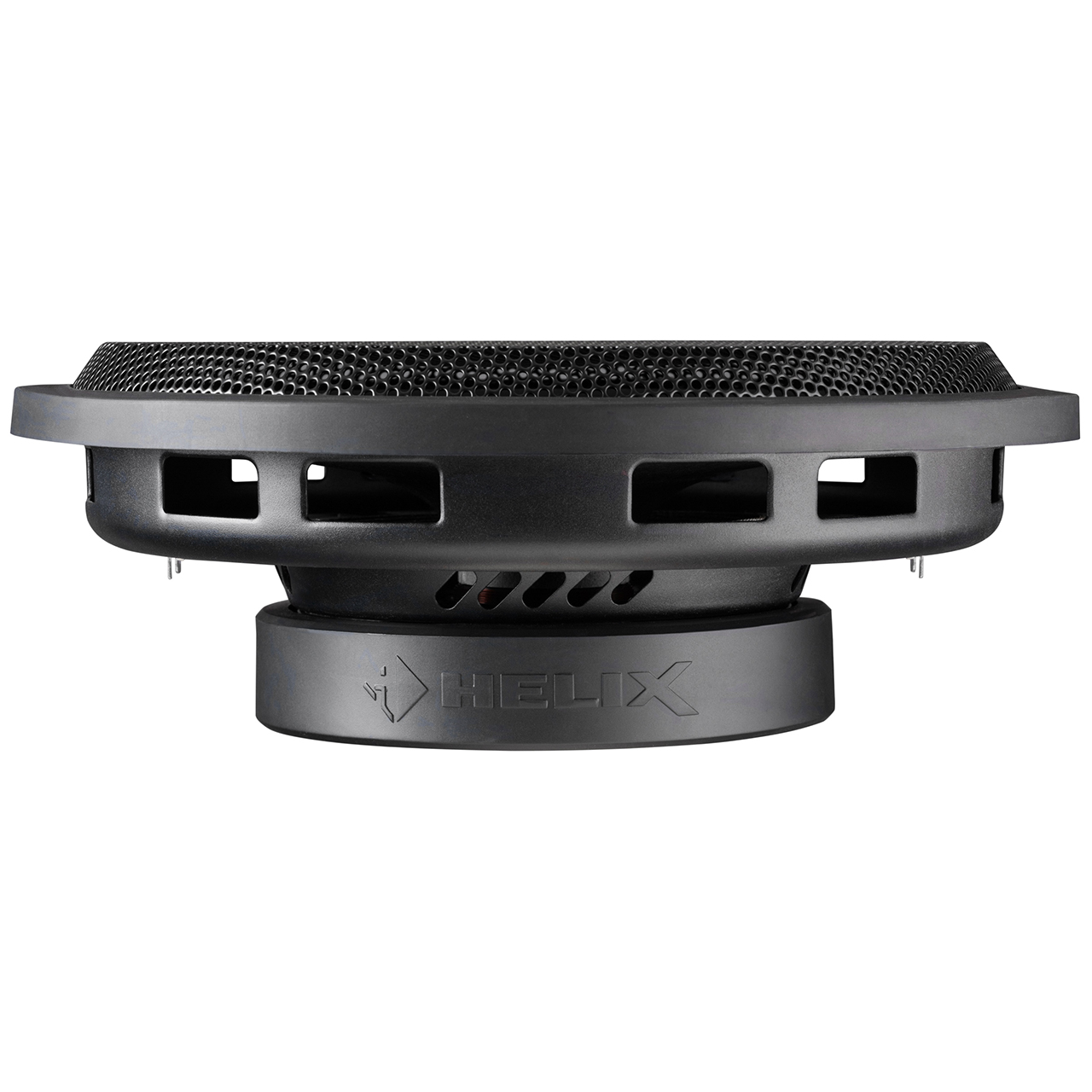

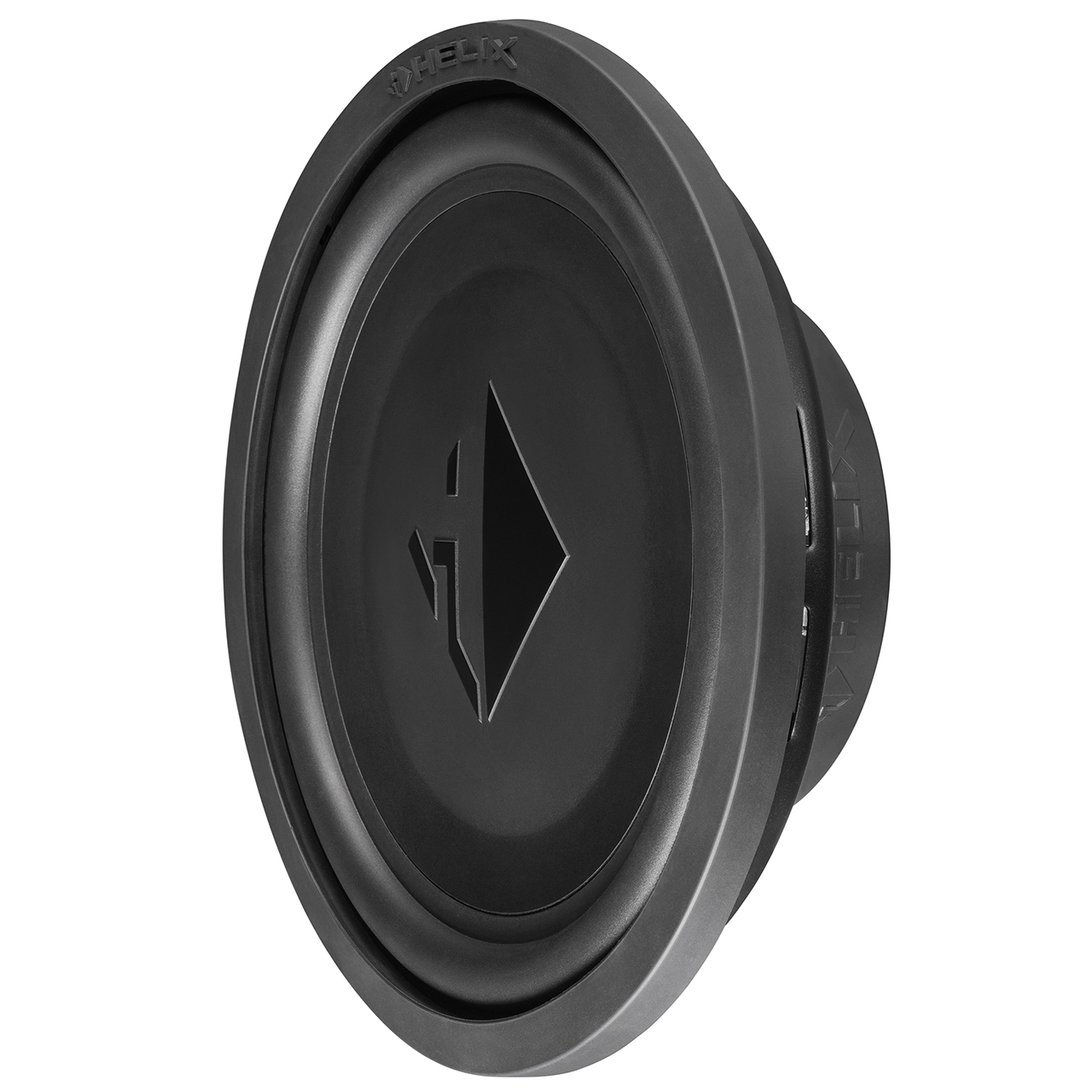

Helix IK S12 12″ erikoismatala subwoofer 600W. Suosittelemme!

Helixin K-sarjan subwooferelementit toimivat pienissä koteloissa. Sekä refleksikotelossa että suljetussa. Kohtuuhintaiset elementit 2×2 ohmin tai 1×2 ohm puhekeloilla tarjoavat hintaisekseen erittäin hyvää äänenlaatua pienestä tilasta. Tuplapuhekelojen ansiosta voit käyttää monenlaisia vahvistimia näiden elementtien soittamiseen

Power handling RMS / max. P 300 / 600 Watts
Impedance Z 1 x 2 Ω
DC resistance Re 1 x 2 Ω
Resonance frequency Fs 36 Hz
Mechanical Q factor Qms 5.41
Electrical Q factor Qes 0.52
Total Q factor Qts 0.48
Compliance Cms 95 μm/N
Equivalent air volume Vas 40 L
Force factor B*I 17.2 Tm
Sensitivity SPL 91.0 dB @ 2.83V / 1m
88.0 dB @ 1W / 1m
Cone area Sd 523 cm²
Moving mass Mms 220 g
Cone material Sandwich paper cone
Mechanical resistance Rms 7.9 kg/s
Voice coil diameter ø 50.8 mm
Voice coil winding height 24 mm
Max. linear excursion Xmax +/- 8.0 mm
Outer diameter ø 316 mm / 12.44″
Installation diameter ø 276.8 mm / 10.90″
Installation depth 95.5 mm / 3.76″

Recommended enclosure volumes

Sealed box
Net volume 22 L
Lower limiting frequency (-3dB) 39 Hz
Recommended DSP settings Recommended ″self-define″ highpass filter with 35 Hz cut-off frequency and Q = 1.5
additional EQ filter 75 Hz / Q = 1.5 / -3 dB

Vented box
Net volume 40 L
Port diameter ø 100 mm / 3.94″
Port area 78 cm²
Port length 32 cm / 12.6″
Port tuning frequency Fb 36 Hz
Lower limiting frequency (-3dB) 37 Hz
Recommended DSP settings Recommended ″self-define″ highpass filter with 36 Hz cut-off frequency and Q = 1.0
additional EQ filter 75 Hz / Q = 0.7 / -2 dB

Scope of delivery
1 x Subwoofer HELIX IK S12-DVC2

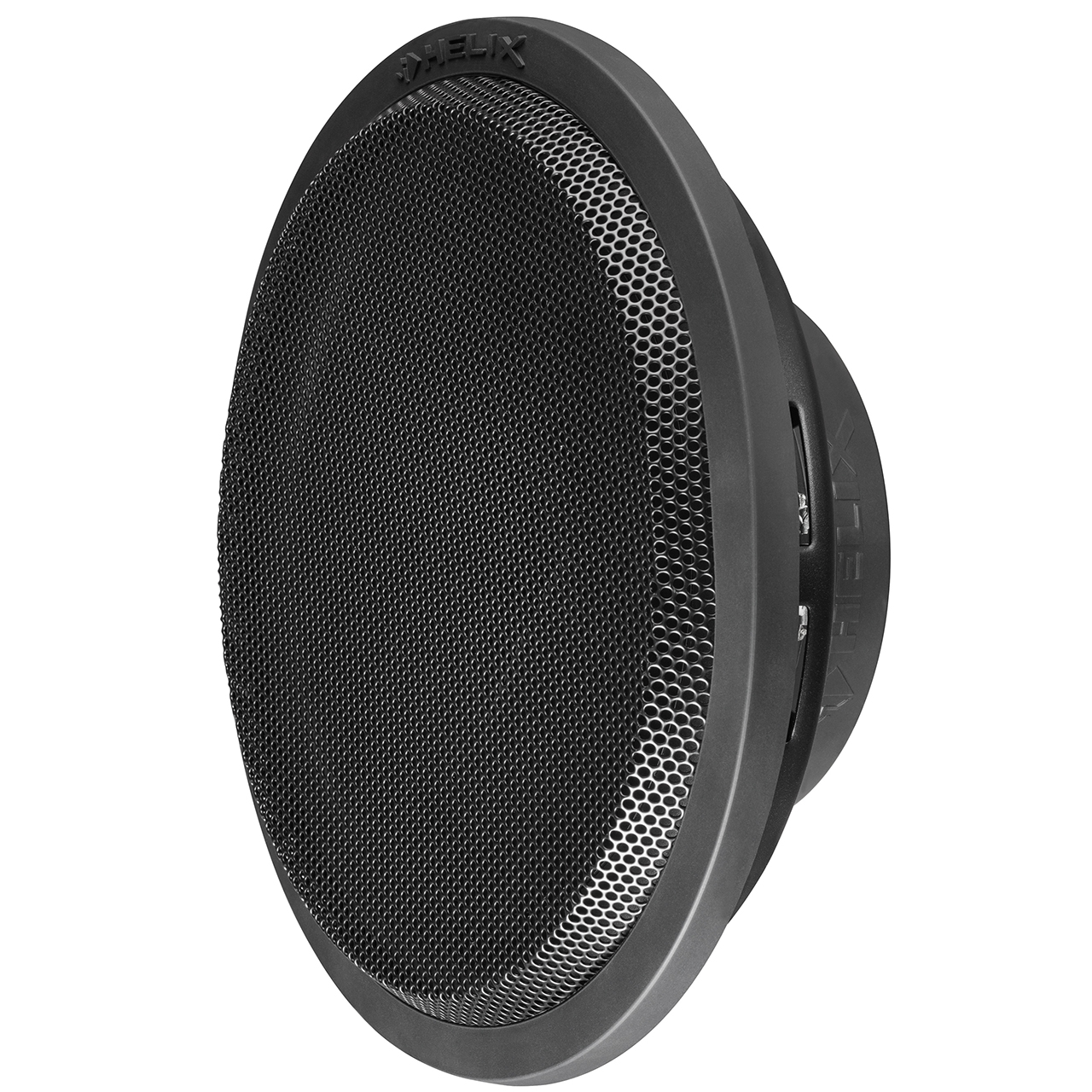

1x Grille
1 x Gasket
1x Enclosure connecting terminal
1 x Data sheet
