Alkuperäinen hinta oli: 819,00 €.739,00 €Nykyinen hinta on: 739,00 €.
Kenwood DMX8021DABS WIFI DSP Bluetooth 7” multimediasoitin
7″ Digitaalinen multimedia-vastaanotin jossa WiFi, Bluetooth & Langaton Android Auto / Apple Carplay.
2 puhelimen yhtäaikainen toiminto, kuten työpuhelin ja siviilipuhelin
3x kamera sisääntulo
3 x RCA 5V -ulostulo (eteen ja taakse + subwoofer) antaa sinulle mahdollisuuden laajentaa äänijärjestelmääsi.
Soittimessa on 13 kaistainen EQ ja DSP aikaviivesäädöt.
Ilmainen
2-3 Päivää
Ilmainen yli 100€
2-3 Päivää
Ilmainen yli 100€
2-3 Päivää
Alkaen 15,19€

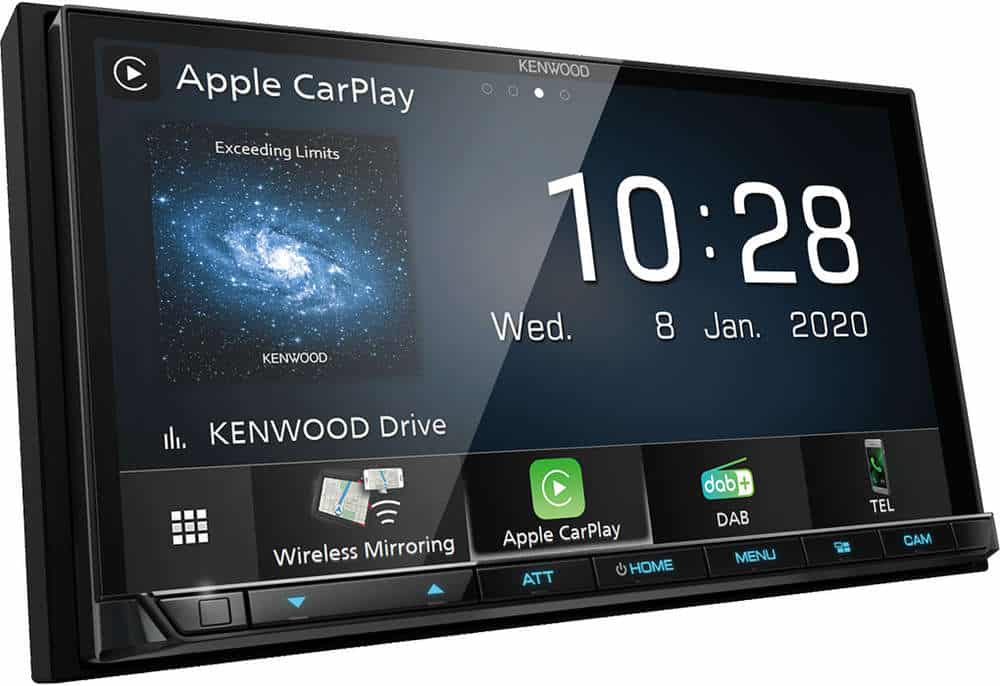

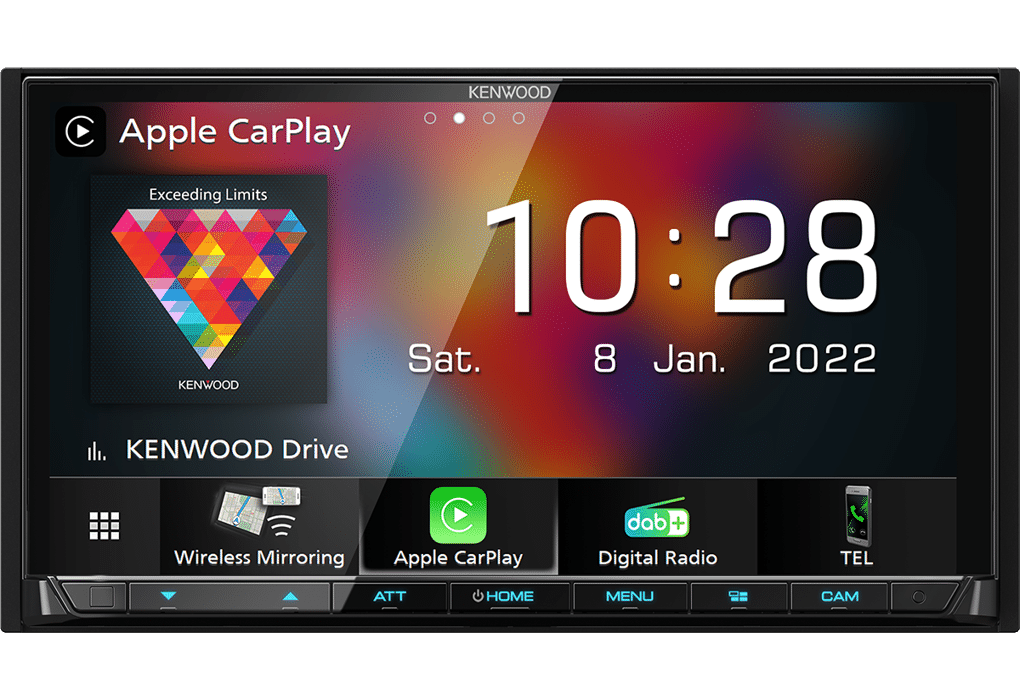

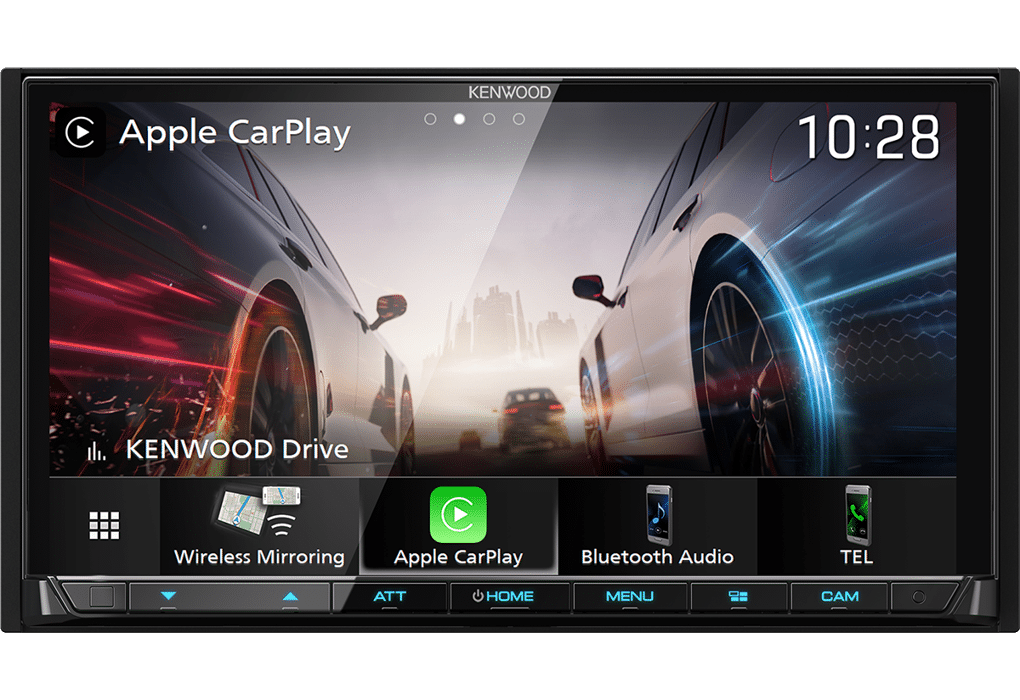

Kenwood DMX8021Dabs autosoitin on varustettu 7″ WVGA-kosketusnäytöllä, joka tarjoaa selkeän ja terävän kuvan sekä helpon käytön.
Laite tukee myös Apple CarPlay- ja Android Auto -yhteyksiä, joten voit helposti yhdistää älypuhelimesi laitteeseen ja käyttää sen ominaisuuksia. Android Auto sekä Apple CarPlay toimivat DMX8021 langattomasti.
Voit soittaa musiikkia, vastata puheluihin ja käyttää navigointia suoraan autosi näytöltä. Sovellukset optimoituvat automaattisesti autokäyttöön sopivaan muotoon, joten voit nauttia mediantoistoston, navigoinnin tai muun sovelluksen tuomasta hyödystä ja viihteestä ilman, että se häiritsee ajamista.
Laitteessa on myös sisäänrakennettu Bluetooth, joka mahdollistaa langattoman musiikin suoratoiston ja handsfree-puhelut.
Voit myös yhdistää langattomat kuulokkeet ja nauttia musiikista ilman häiriöitä.
Pääominaisuudet:
Kaikki ominaisuudet:
| 7.0 “WVGA capacitive touch panel with sharp, high-contrast images, vivid colors and wide viewing angles. |
| Wi-Fi built-in for convenient wireless connection with a compatible smartphone. |
| DAB/DAB+ radio tuner for noise & interference free reception and crystal-clear digital stereo sound |
| Bluetooth(R) Wireless Technology for hands-free calls and music streaming. (Available functions depend on cell phone). |
| Supports CarPlay wirelessly and with a USB cable. |
| Supports Android Auto wirelessly and with a USB cable |
| Supports Wireless Mirroring for Android including 2-way touch control capability. |
| Featuring 4 camera inputs allow for the utmost in convenience, flexibility, and safety. |
| 3 RCA high power (5.0V) preouts (front/rear/sub) |
| Compatible with Hi-Res Audio which provides greater sound clarity and detail than standard compressed digital audio formats. |
| Digital Sound Processor, Time Alignment & 13-Band EQ for optimal sound tuning enhancements. |
| Rear High Speed USB type-C port. Up to 3.0A Max Charge |
| Short body (85mm) for easy installation. |
| DIN Size | 2 DIN |
| Security Code Function ( user set) | Yes, Set by user |
| Smooth GUI | Yes |
| Selectable GUI Background Wallpaper | Yes |
| Key Illumination | Variable color |
| Installer Memory | Yes |
| Back-up Memory | Yes |
| Attenuator with Smooth Volume Return | Yes |
| Optional IR remote controller | Yes, (KCA-RCDV331) |
| Digital Clock (24H) | Yes |
| Built-in Bluetooth | Yes |
| DAB Tuner Built-in | Yes |
| Wifi built-in | Yes |
| Made for iPhone | Yes |
| Works with Apple CarPlay | Yes |
| Works Wireless with Apple CarPlay | Yes |
| Works with Android Auto | Yes |
| Works Wireless with Android Auto | Yes |
| Wireless Mirroring for Android | Yes |
| Firmware upgreadable | Yes |
| HDMI input | for video playback |
| Dashcam Link | Yes |
| GPS input | GPS & Glonass Antenna included |
| Screen Type | 7,0″ Wide VGA |
| Display Type | Glare |
| Display film | Anti-Fingerprint / Anti-Reflection / Anti-Glare) |
| Touch Panel | Capacitive |
| Display Mode | 3 Mode (Full(default)/Auto/Normal) |
| Screen Adjustments | ► Noon & Night Memory. ► Brightness. ► Tint. ► Colour. ► Contrast. ► Black Level. ► Backlight. |
| Dimmer function | Manual/Sync |
| Dimmer Level | Sync / On / Off |
| Visual Source Mode | Mirorring / CarPlay / Android Auto. |
| LCD viewing angle control | “0” (Default) / “-1” / “-2” / “-3” |
| NTSC/PAL judge | Yes (Auto) |
| Menu text | 22 languages: ► English(UK)(Default) ► English(US) ► Spanish ► French ► German ► Italian ► Dutch ► Russian ► Portuguese ► Chinese (Simplified) ► Chinese (Traditional) ► Thai ► Turkish ► Arabic ► Persian ► Hebrew ► Greek ► Malaysian ► Indonesian ► Polish ► Czech ► Hungarian |
| Software updates (SoC) | via USB |
| Graphics Type | Graphics |
| Spectrum Analyzer | Yes |
| Demonstration Mode | Yes |
| Top Menu Customize | Yes |
| Opening Screen Type | standard |
| Background Customize | Preset x6: ► Static x4. ► Colour Customize x1. ► Sync Album Art x1. ► USER x2. |
| Wallpaper colour change | Yes |
| Multi Widgets | Clock & Photo Frame Widget |
| Picture in picture | Yes |
| Animation | Yes |
| Screen Capture | Yes |
| R-CAM interrupt | Yes |
| R-CAM Caution On Screen Display | Yes |
| R-CAM Parking Guide Lines | Yes |
| Front Camera Interruption | Yes |
| DashCam Control | Yes |
| Rapid charge indicator | Yes |
| WiFi built-in | built-in |
| Frequency Range | Dual Band (2.4GHz / 5GHz) |
| IEEE standard | 802.11a/b/g/n/ac |
| Wifi connection for Apple CarPlay | Yes |
| Wifi connection for Android Auto | Yes |
| Wifi connection for Android Mirroring | Yes |
| Station Select | Manual / Preset (List) |
| Tuner Type | Lithio |
| FM Stereo / Mono Selector | Yes |
| FM(RDS) + AM(MW/LW) Tuner | Yes |
| Tuning mode | |
| Up/Down Seek/Scan | Yes |
| Tuner Presets (FM/AM) | 20 Presets (15FM / 5AM) |
| Automatic Memory Entry (AME) | Yes |
| Tuner Preset Back-up Memory | Yes |
| Radio Data System | Yes |
| Radio Text Plus | Yes |
| Traffic Information | Yes |
| Local search | Yes |
| AF Regional | Selectable: AF/AF Reg/OFF |
| Auto TP search | Yes |
| Enhanced Other Networks Function (EON) | Yes |
| Program Type Function (PTY) | Yes |
| DAB+ tuner built-in | Yes |
| Digital Radio Certification Mark | Yes |
| Intelligent seek | Yes, (Service, Ensemble & Component) |
| Ensemble seek | Yes |
| Tuning mode / Seek mode | Auto1/Auto2/Manual |
| Service preset | 15 ch * 1 bank presets, |
| Service list by alphabet order | Yes |
| Preset list | Yes |
| Alphabet Search | Yes |
| Related service | Yes |
| Traffic Information | Yes |
| DAB priority | Yes |
| DAB-DAB/DAB-FM auto switch | Yes |
| Seamless DAB-FM blending | Yes |
| DLS (Dynamic Label) | Yes |
| PTY (Programme Type) search | Yes |
| PTY (Programme Type) watch | Yes |
| Announcement Switching (ASW) Select | Yes |
| TMC (Traffic Message Channel) support | Yes |
| DMB Audio (Digital multimedia broadcasting) | Yes |
| Soft linking | Yes |
| Antenna power supply on/off switch | Yes |
| Module | Murata |
| Hands Free Profile (HPF) | V1.7 |
| Hands Free Profile with High Sound Quality | HFP V1.7 |
| 2 Phones Switchable Hands Free | Yes |
| 2 phones full time connection | Yes |
| Audio Streaming (A2DP) | Yes, (SBC/AAC) |
| High Quality Audio Streaming | SBC/AAC |
| Max num. of regist. units for A2DP | 5 units |
| Serial Port Profile (SPP) | Yes |
| Simple Secure Pairing (SSP) | Yes |
| Phonebook Access Profile (PBAP) | Yes |
| Audio/Video Remote Control Profile (AVRCP) | Yes, V1.6 |
| Multi Profile Support | Yes |
| iPhone & Android automatic pairing via USB | Yes |
| KENWOOD Remote App Ready | |
| KENWOOD Music Mix Support | Yes |
| Catchphone / Call Waiting | Yes |
| Private mode | Yes |
| Alphabet Search (Phonebook) | Yes |
| Noise Canceller | Yes |
| Echo Canceller | Yes |
| Phone device status display | Yes |
| Audio device status display | Yes |
| Signal strength display | Yes |
| Remaining battery display | Yes |
| High-quality noise canceling microphone | Included (rear wired) |
| MPEG1/2 files are playable | USB |
| MPEG4 files are playable | USB |
| WMV files are playable | USB |
| H.264 files are playable | USB |
| mkv files are playable | USB |
| USB terminal | Yes, Super Speed USB-C type. |
| USB Type | 2.0 High speed |
| USB extension cable supplied | yes, 1m |
| Drive Change | Yes |
| Works with Android Auto | Yes |
| Works with Apple CarPlay | Yes |
| Tag Information Display | Yes |
| Album Art Display | Yes |
| Repeat/Scan/Random search | Yes |
| Repeat Play | Folder/File/All |
| Random play | Folder |
| Category search | Yes |
| Link Search | Yes |
| Last Position Memory / Resume | Yes |
| Time code display | Yes |
| Made for iPod & iPhone * | Yes |
| USB Direct Control (Audio, 1 wire, Lightning-connector) | with optional cable KCA-iP103 |
| Album art support | Yes |
| Music library search | Yes |
| Alphabet search | Yes |
| Skip search | Yes |
| iPod Accessory Protocol (iAP) | iAP2 |
| iTunes Radio App | yes iAP2 |
| Works with Apple CarPlay | Wireless or Wired via USB |
| Reverse browsing | Yes |
| Voice Control using Siri. | Yes |
| Bluetooth Auto Paring for iPhone | Yes |
| Battery charge + power control | Yes |
| * Always update to latest Apple firmware |
| Max. Output Power (MOSFET Power IC) | 4 x 50W |
| Pre-out | 3RCA: Front/Rear/Subwoofer |
| Pre-out Output Level | 5V |
| Volume Offset | Yes |
| Balance/Fader Control | Yes, (via DSP) |
| Loudness Control | Yes, By DSP |
| Bass Boost | Yes, (Via DSP) |
| Att.(-20dB) with smooth Volume Return | Yes |
| Equalizer | Yes, 13 Band Graphic EQ |
| Digital Sound Processor (DSP) | Yes |
| Digital Time Aligment (DTA) | Yes |
| Beep On/Off | Yes |
| Car type control | Off / Compact / Sedan / Wagon / Minivan / SUV / Passenger Van |
| Speaker Size & Location Control | Yes |
| X’over network | 3-Way / 2-way X’over / HPF / LPF |
| Listening postion control / Time Alignment | Yes |
| Equalizer type | Graphical |
| Equalizer | 13-Bands |
| Equalizer presets / User set | 8 presets / 4 User set |
| Balance & Fader Control | Yes |
| Source Volulme Offset | source independent |
| Sound Effects | ► Bass Boost ► Supreme ► Loudness ► Realizer ► Drive Equalizer ► Stage EQ ► Space Enhancer |
| Audio Setup Memory | Yes |
| iPod direct control | Yes |

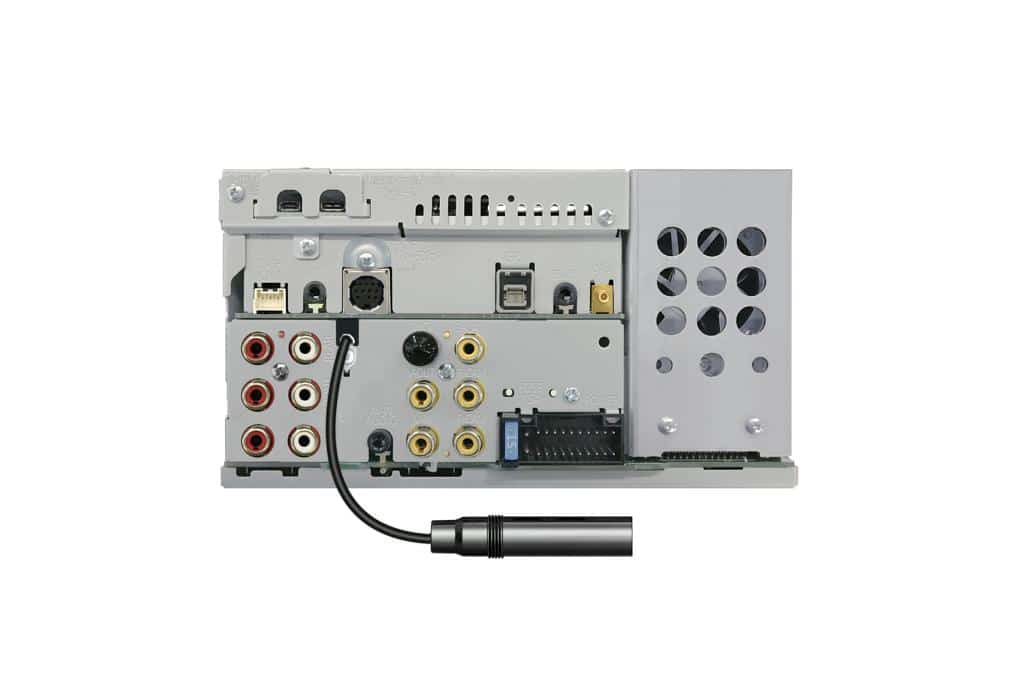

| USB interface | USB-C (Detachable, Rear side) |
| DC-Cord | Mitsumi to ISO |
| Reverse sensor wire | Yes |
| Parking sensor (handbrake) wire | Yes |
| Power Control (P.CON) wire | Yes |
| 2-way (Tel/Navi) mute wire | Yes |
| Dimmer control wire | Yes |
| Speedpuls input wire | Yes |
| Amplifier pre-out | 3 x RCA: Front/Rear/Subwoofer |
| AV-Input | 1x mini-jack (selectable: AV-in / Camera-in) |
| AV Output | Video: RCA / Audio: mini-jack |
| Available AV-Out source | AV-in / Off |
| Camera inputs | up to 4 camera’s |
| Rear View Camera Input | Dedicated RCA Video-in |
| Front View Camera Input | selectable: Front / Dash-Camera-in |
| HDMI input | Type A |
| Multi View Camera Control Line | Yes |
| Dashcam Link | Yes |
| GPS Aerial Input | HRS GT5-1S connector |
| FM Antenna Input | JASO connector |
| DAB Aerial input | SMB connector |
| External microphone input | 3,5mm mini-jack |
| OEM Wired Remote Control ready | Yes, Optional interface needed |
| OEM Display Control ready | Yes, Optional interface (KIM) needed |
| Learning Steering Remote Function | Yes |
| Display input/output control | Yes |
| FM range: 87.5Mhz – 108MHz (50Khz step) | Yes |
| FM Usable Sensitivity | 0.8μV/75ohm (S/N 30dBf) |
| FM Quieting Sensitivity | 1.6μV/75ohm (S/N 15.2dBf) |
| FM Frequency Response | 30Hz ~ 15kHz (± 3dB) |
| FM Signal to noise ratio (Mono) | 65dB |
| FM Selectivity(DIN) | over 80dB (±400kHz) |
| FM Stereo Separation (1kHz) | 45dB |
| MW range: 531kHz – 1611kHz (9kHz step) | Yes |
| MW Usable Sensitivity | 45μV |
| LW range: 153kHz – 279kHz (9kHz step) | Yes |
| LW Usable Sensitivity | 25μV |
| Band III – Frequency range | 174.928 MHz – 239.2MHz |
| Mode | I, II, III, IV |
| Sensitivity | – 100dBm |
| Signal to noise ratio | 90dB |
| Audio format | MPEG1 Audio Layer II, MPEG4 HE-AAC v2 |
| DAB Aerial Connector Type | SMB |
| Output Voltage | 14.4V (11V to 16V allowable) |
| Maximum Current | < 100 mA |
| Technology | Bluetooth V5.0 |
| Frequency | 2.402 – 2.48 GHz |
| Output power | +4dBm(max), power class 2 |
| Maximum range | Line of sight approx. 10 meter |
| Handsfree profile (HFP) | Yes, V1.7 |
| Serial port profile (SPP) | Yes |
| Advanced audio distribution profile (A2DP) | Yes |
| Audio Codec | SBC/AAC |
| Audio/Video remote control profile (AVRCP) | Yes, V1.6 |
| Phonebook access profile (PBAP) | Yes |
| Multi Profile Support | Yes |
| USB Version compatibility | USB-C – 2.0 High Speed |
| File System | FAT 16/32 / exFAT / NTFS |
| Maximum Supply current | 1500mA |
| D/A Converter | 24/32 bit |
| Video Decoder | MPEG1/MPEG2/MPEG4/WMV/H.264/MKV |
| Audio Decoder | MP3/WMA/AAC/WAV/FLAC/Vorbis |
| S/N Ratio | 98.5 dB (1kHz) |
| Dynamic Range | 89dB |
| Maximum Power | 50 W x 4 |
| Output Power (DIN45324,+B=14.4v) | 22 W x 4 |
| Output frequency band | 20 Hz ~ 88 kHz |
| Preout Level | 5000 mV / 1 kOhm, |
| Preout Impedance | ≤ 300 Ohm |
| Speaker Impedance | 4 Ohm ~ 8 Ohm |
| Frequency band | 62.5/100/160/ ~ /6.3k/10k/16k Hz |
| Equalizer Gain | –9db ~ +9db |
| Time Alignment | 0 — 610cm(1 cm step) |
| Speaker type – Center | ► NONE ► 40mm X 70mm ► 5cm ► 10cm ► 13cm ► 16cm OVER |
| Speaker type – Front | ► O.E.M. ► 10cm ► 13cm ► 16cm ► 17cm ► 18cm ► 4″ x 6″ ► 5″ x 7″ ► 6″ x 8″ ► 6″ x 9″ ► 7″ x 10″ |
| Speaker type – Rear | ► NONE ► O.E.M ► 10cm ► 13cm ► 16cm ► 17cm ► 18cm ► 4″ x 6″ ► 5″ x 7″ ► 6″ x 8″ ► 6″ x 9″ ► 7″ x 10″ |
| Speaker type – Sub woofer | ► NONE ► 16cm ► 20cm ► 25cm ► 30cm ► 30cm over |
| 2-Way X’over / Front/Rear (HPF) / Frequency | Through, 30/40/50/ ~ /220/250 Hz |
| 2-Way X’over / Front/Rear (HPF) / Slope | -6/-12/-18/-24 (dB/oct) |
| 2-Way X’over / Subwoofer (LPF) / Frequency | 30/40/50/ ~ /220/250 Hz, Through |
| 2-Way X’over / Subwoofer (LPF) / Slope | -6/-12/-18/-24 (dB/oct) |
| 3-Way X’Over / High Pass Filter Frequency | Through, 30/40/50/ ~ /220/250 Hz |
| 3-Way X’Over / High Pass Filter Slope | -12/-18/-24 (dB) |
| 3-Way X’Over / Low Pass Filter Frequency | 30/40/50/ ~ /220/250 Hz, Through |
| 3-Way X’Over / Low Pass Filter Slope | -12/-18/-24 (dB/Oct |
| Subwoofer Level | -50dB ~ 10dB |
| Car type control | ► Off ► Compact ► Sedan ► Wagon ► Minivan ► SUV ► Passenger Van |
| Color System of External Video Input | NTSC/PAL |
| External video input level (mini-jack) | 1 Vpp / 75 Ohm |
| External audio max. input level (mini-jack) | 2 Vpp / 25 kOhm |
| Video input level (RCA) | 1 Vpp, 75 Ohms |
| Video Output Level (RCA) | 1 Vpp / 75 Ohm |
| Audio Output Level (mini-jack) | 0.9 Vpp / 10 kOhm |
| HDMI – VGA input resolution | 640x480p @59.94Hz/60Hz |
| HDMI – 480p input resolution | 720x480p @59.94Hz/60Hz |
| HDMI – 720p input resolution | 1280x720p @59.94Hz/60Hz |
| HDMI – input Audio type | 16/20/24-bit Linear PCM |
| Screen size (Diagonal) | 6.95 Inches Wide |
| Screen Size (WxH) | 156.6 x 81.6mm |
| Display system | Transparent TN LCD Panel |
| Drive system | TFT Active Matrix System |
| Number of Pixels | 1152000pixels (800(H) x 480(V) x RGB) |
| Effective pixels | 99.99% |
| Pixel arrangement | RGB Striped |
| Back lighting | LED (Light Emitting Diode) |
| Operating voltage | 14.4V (11 ~ 16V Allowable) |
| Dimensions (WxHxD) | 178 x 100 x 85mm |
| Weight | 1500 gr. |
| Release keys | 2 pieces |
| Escutcheon | Yes |
| Installation Sleeve | Yes |
| DC cord (Mitsumi to ISO) | 20 cm |
| usb extension cable | 1 piece, 1 meter |
| GPS antenna | with 3.5 m cable |
| Handsfree Microphone | with 3 m cable |
| Multi-Language Instruction Manual Included | Quick-Guide + Instruction manual |
| Manuals Downloadable | Yes |
Arviot
Clear filtersTuotearvioita ei vielä ole.
